MicroLED 0.1" Display

MIPI / QSPI

4 μm

500 * 380

50 mW

Features Tech Specs Related Customize

Features

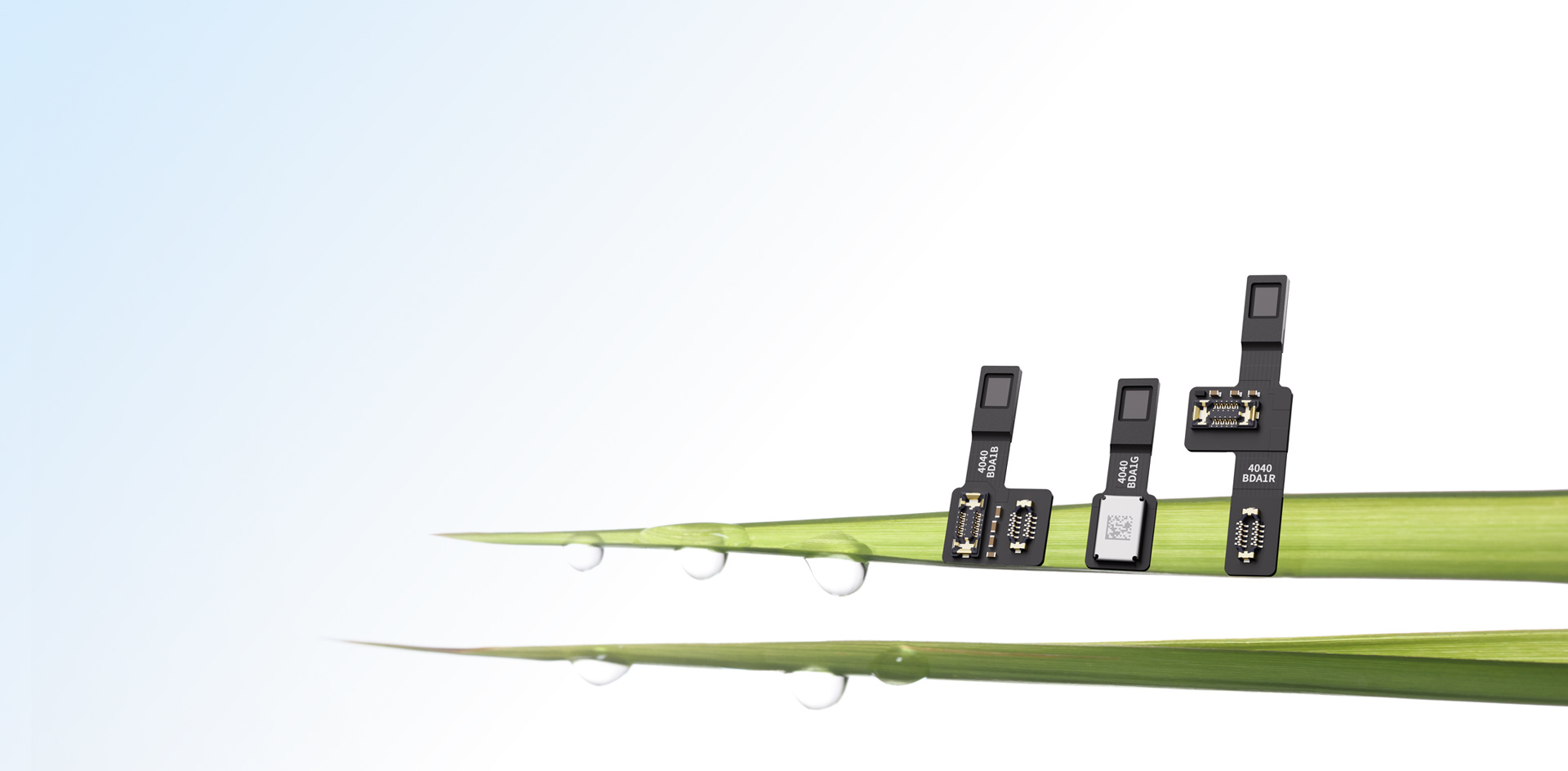

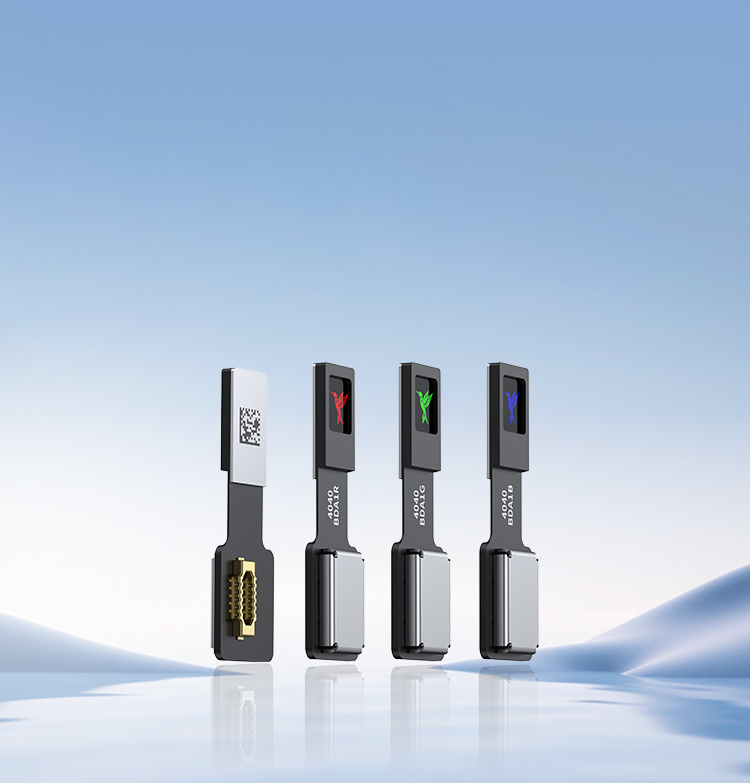

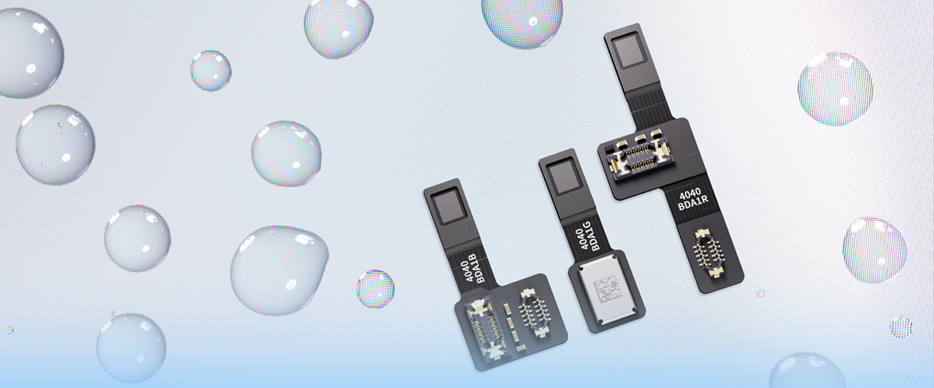

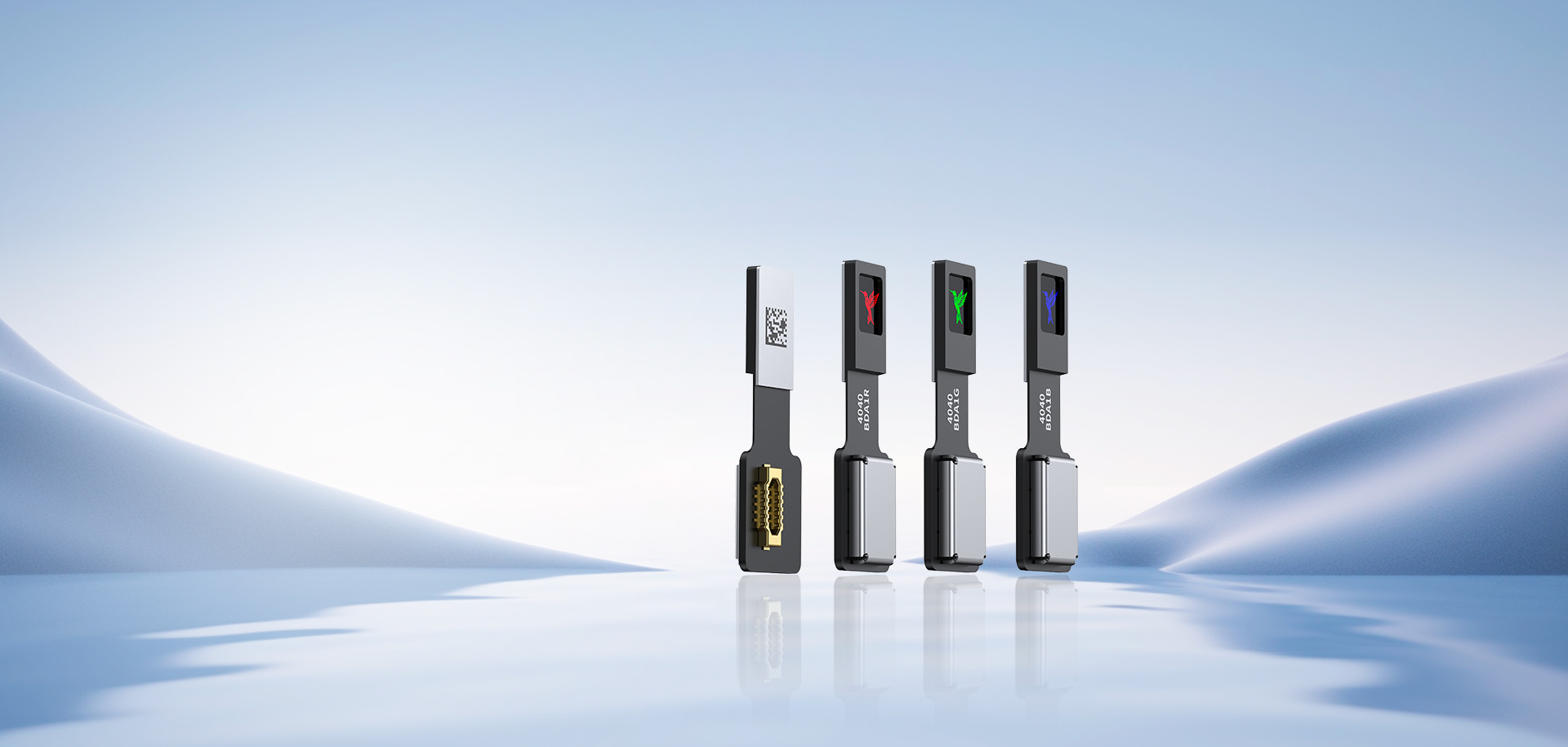

AM-µLED™ 0.1 Series Displays

The 0.1-inch MicroLED AMμLED™ microdisplay combines a compact form factor with high brightness and low power consumption. It features a 500×380 resolution, refresh rates up to 480 Hz, and 10-bit color depth. The green panel reaches an extraordinary peak luminance of 10 million nits. Power consumption can be as low as 50 mW under typical operating conditions.

0.1 inch
480Hz Refresh Rate
50mW
10 million nits (G)
-20℃ ~ 80℃

Ideal for near-eye information display AR, sports optical displays, HUD (Heads-Up Display), and embedded micro-projection applications.

01

Near Eye Display
02

Sports Optics
03

HUD
04

Micro Projection

Tech Specs

Size
0.1"

Resolution
500 * 380
Color
Monochrome (R,G,B)

Pixel Pitch
4 μm
Dimension of active area
2.048 mm * 1.600 mm

Brightness
10 million nits (G)
Color Depth
10 bit

Typical Power
50 mW
Refresh Rate
480 Hz

Interface
MIPI/QSPI
Weight
0.1 g

Operating Temperature
-20℃ ~ 80℃
Storage Temperature
-40℃ ~ 85℃

0.13''

MicroLED 0.13" Display

MIPI/QSPI

0.13"

MicroLED 0.13" Display

QSPI/SPI

Customize

JBD offers custom display & projector solutions Customize >
