MicroLED 0.13" Display

MIPI / QSPI

4 μm

640 * 480

60 mW

Features Tech Specs Related Customize

Features

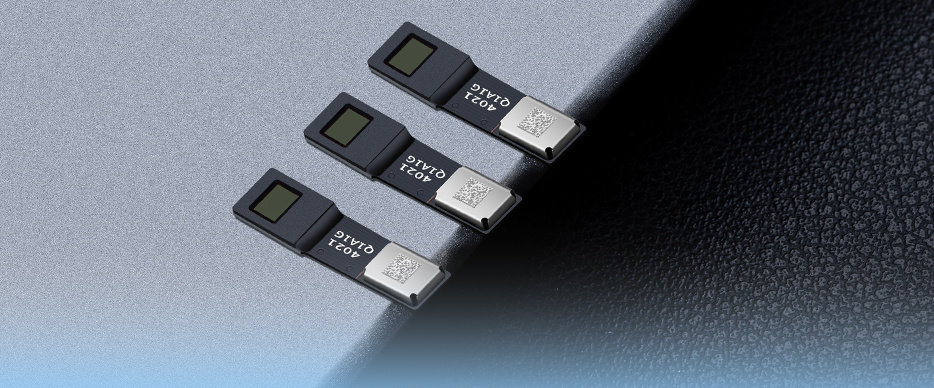

AM-µLED™ 0.13 Series Displays

The MicroLED AMμLED™ 0.13 Series MIPI microdisplay offers an active display diagonal of 0.13 inches (3.3 mm) with a resolution that delivers an extraordinary 6,350 pixels per inch (PPI), positioning it among the world’s smallest and brightest microdisplays. It delivers an impressive luminance of up to 10 million nits while consuming a typical power of 60 milliwatts under average operating conditions. JBD has used this display to create a projector with a volume of just 0.15 cc, highlighting its impressive compactness, exceptional brightness and low power consumption.

0.13 inch
Embedded Demura
60 mW
10 million nits (G)
-20℃ ~ 80℃

Ideal for near-eye information display AR, sports optical displays, HUD (Heads-Up Display), and embedded micro-projection applications.

01

Near Eye Display
02

Sports Optics
03

HUD
04

Micro Projection

Tech Specs

Size
0.13"

Resolution
640 * 480
Color
Monochrome (R,G,B)

Pixel Pitch
4 μm
Dimension of active area
2.64 mm * 2.02 mm

Brightness
10 million nits (G)
Color Depth
8 bit

Typical Power
60 mW
Refresh Rate
60/75 Hz

Interface
MIPI/QSPI
Weight
0.2 g

Operating Temperature
-20℃ ~ 80℃
Storage Temperature
-40℃ ~ 85℃

Status
In-production

0.13"

MicroLED 0.13" Display

QSPI/SPI

0.13''

MicroLED 0.13" Display

MIPI/QSPI

Customize

JBD offers custom display & projector solutions Customize >
