Hummingbird Ⅱ Polychrome Projector

MicroLED Polychrome Projector

Hummingbird Ⅱ

0.2 cc

0.5 g

25° FOV

Features Tech Specs Related Customize

Features

Hummingbird Ⅱ
MicroLED Polychrome Projector

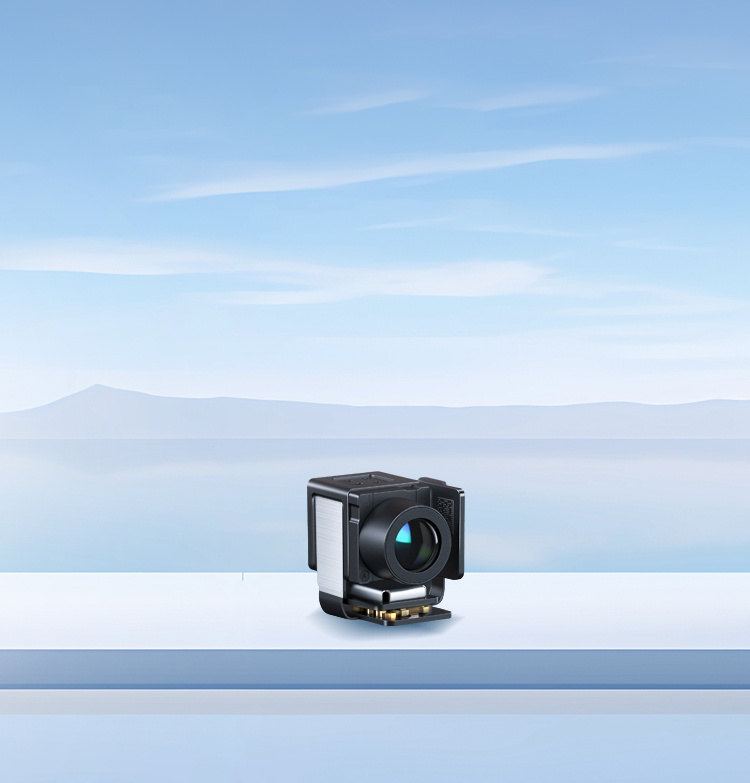

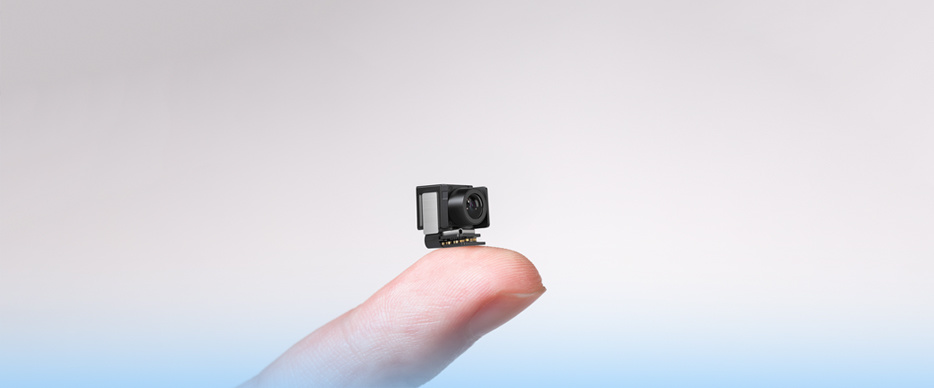

JBD's Hummingbird II is an ultra-compact MicroLED polychrome projector, measuring only 0.2 cc in volume and 0.5 g in weight, designed for next-generation AR smart glasses. It combines three 0.1" R, G, and B monochrome MicroLED microdisplays through an X-cube prism. The projector delivers a 25° field of view, 3 lumens of luminous flux, and up to 4,000 nits of eye-level brightness when paired with waveguides. Power consumption can be as low as 95 mW under typical operating conditions, making it ideal for lightweight AR glasses.

0.2 cc
480Hz Refresh Rate
95 mW
3 lm
-20℃ ~ 60℃

Tech Specs

FOV
25°

Resolution
500 * 380
Color
Polychrome（X-cube）

Volume
0.2 cc
Weight
0.5 g

Luminous Flux
3 lm
Typical Power
95 mW

EPD
3.3 mm
VID
Infinity

Interface
MIPI
Operation Temperature
-20℃ ~ 60℃

Storage Temperature
-40℃ ~ 85℃

0.4cc

Hummingbird Ⅰ Polychrome Projector

Polychrome

0.15cc

Hummingbird Mini Ⅱ Monochrome Projector

Monochrome

0.3cc

Hummingbird Mini Ⅰ Monochrome Projector

Monochrome

Customize

JBD offers custom display & projector solutions Customize >
